USB host interface. More...
#include <stdbool.h>#include <stdint.h>
Include dependency graph for usb.h:

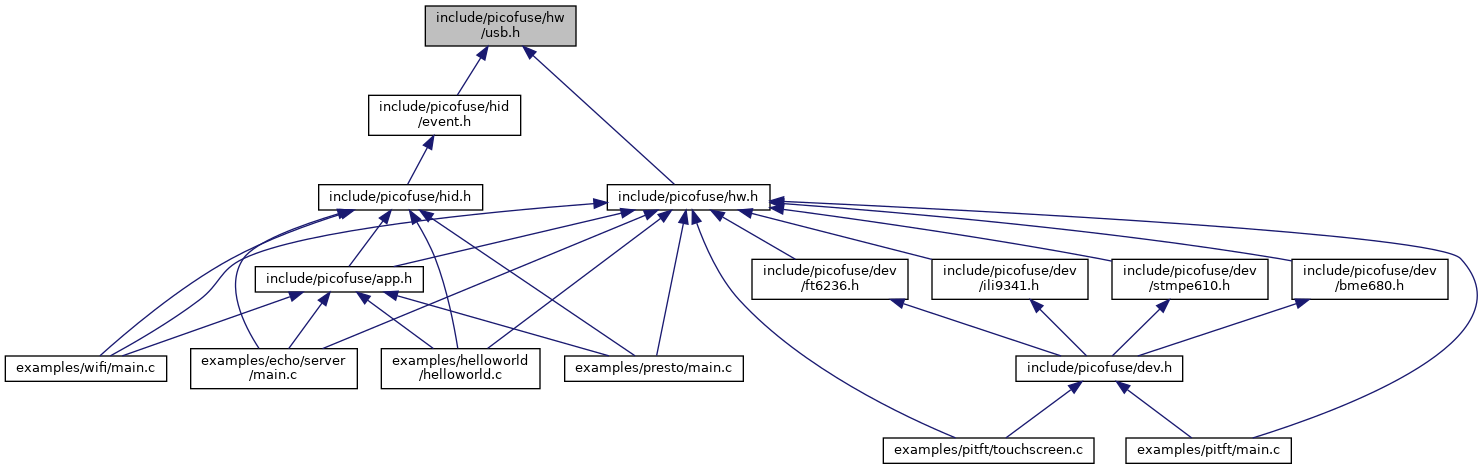

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | hw_usb_device_t |
| Describes one interface of a USB device observed by the host. More... | |
Macros | |
| #define | HW_USB_STRING_MAX_LENGTH 63 |
| Maximum length of USB string descriptor fields, excluding the null terminator. | |
| #define | HW_USB_INTERFACE_MAX_COUNT 8 |
| Maximum number of interfaces a backend will report attach/detach events for on any single device - internal to each backend's own per-device interface cache, not a limit on any public array. | |
Typedefs | |
| typedef struct hid_t | hid_t |
| typedef struct hid_device_t | hid_device_t |
| typedef struct hw_usb_t | hw_usb_t |
| Opaque USB host handle. | |
| typedef void(* | hw_usb_callback_t) (hw_usb_t *usb, hw_usb_event_t event, const hw_usb_device_t *device, void *userdata) |
| Callback invoked on USB hotplug events. More... | |
Enumerations | |
| enum | hw_usb_event_t { hw_usb_event_attached = (1 << 0), hw_usb_event_detached = (1 << 1) } |
| USB hotplug event type. More... | |
| enum | hw_usb_device_class_t { hw_usb_device_class_per_interface = 0x00, hw_usb_device_class_audio = 0x01, hw_usb_device_class_communications = 0x02, hw_usb_device_class_hid = 0x03, hw_usb_device_class_physical = 0x05, hw_usb_device_class_image = 0x06, hw_usb_device_class_printer = 0x07, hw_usb_device_class_mass_storage = 0x08, hw_usb_device_class_hub = 0x09, hw_usb_device_class_cdc_data = 0x0A, hw_usb_device_class_smart_card = 0x0B, hw_usb_device_class_content_security = 0x0D, hw_usb_device_class_video = 0x0E, hw_usb_device_class_personal_healthcare = 0x0F, hw_usb_device_class_audio_video = 0x10, hw_usb_device_class_bluetooth = 0xE0, hw_usb_device_class_miscellaneous = 0xEF, hw_usb_device_class_application_specific = 0xFE, hw_usb_device_class_vendor_specific = 0xFF } |
| USB device class codes. More... | |
| enum | hw_usb_device_subclass_t { hw_usb_device_subclass_none = 0x00, hw_usb_device_subclass_boot_interface = 0x01, hw_usb_device_subclass_abstract_control_model = 0x02, hw_usb_device_subclass_vendor_specific = 0xFF } |
| USB device subclass codes. More... | |
| enum | hw_usb_device_protocol_t { hw_usb_device_protocol_none = 0x00, hw_usb_device_protocol_keyboard = 0x01, hw_usb_device_protocol_mouse = 0x02 } |
| USB device protocol codes. More... | |
Functions | |
| const char * | hw_usb_device_class_to_string (hw_usb_device_class_t device_class) |
| Convert a USB device class code to a display string. More... | |
| const char * | hw_usb_device_protocol_to_string (hw_usb_device_protocol_t device_protocol) |
| Convert a USB device protocol code to a display string. More... | |
Lifecycle | |
| hw_usb_t * | hw_usb_init (void) |
| Initialize the USB host subsystem. More... | |
| void | hw_usb_deinit (hw_usb_t *usb) |
| Deinitialize the USB host subsystem. More... | |
Methods | |
| void | hw_usb_set_callback (hw_usb_t *usb, hw_usb_callback_t callback, void *userdata) |
| Attach or detach the USB hotplug callback. More... | |
HID Integration | |
| hid_device_t * | hw_usb_register_hid (hid_t *instance, hw_usb_t *usb) |
| Register a USB host hotplug observer as a HID source. More... | |
Detailed Description
USB host interface.
Definition in file usb.h.
