Bosch BME680 environmental sensor interface. More...

#include <picofuse/hw.h>
#include <stdbool.h>
#include <stdint.h>

Include dependency graph for bme680.h:

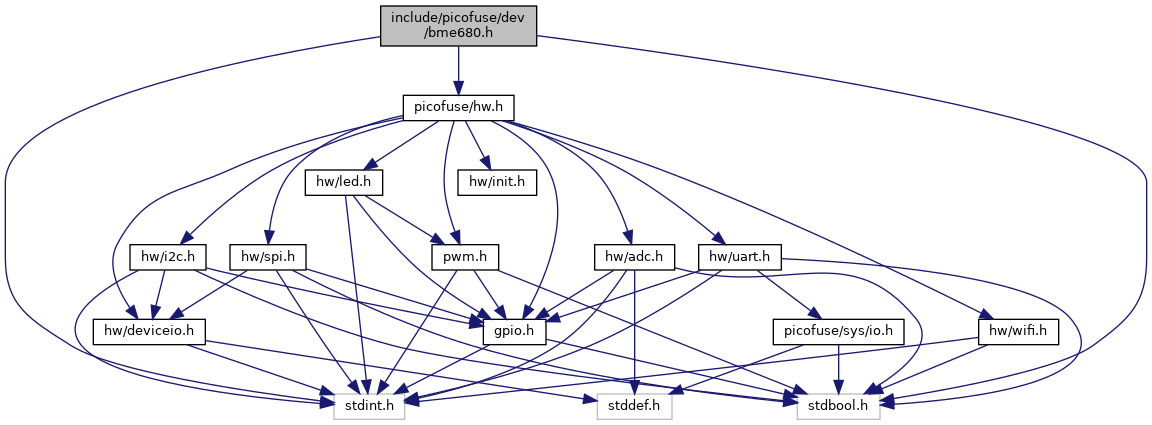

This graph shows which files directly or indirectly include this file:

Data Structures
struct	dev_bme680_data_t
	BME680 measurement values. More...

struct	dev_bme680_config_t
	BME680 runtime configuration. More...

Macros
#define	DEV_BME680_I2C_ADDR_PRIMARY 0x76
	7-bit I2C address when the SDO pin is tied low.

#define	DEV_BME680_I2C_ADDR_SECONDARY 0x77
	7-bit I2C address when the SDO pin is tied high.

#define	DEV_BME680_CHIP_ID 0x61
	Expected value of the chip ID register, used by dev_bme680_init() to confirm a BME680 is actually present before returning a handle.

#define	DEV_BME680_REG_CHIP_ID 0xD0u
	Register holding the chip ID (see DEV_BME680_CHIP_ID).

#define	DEV_BME680_REG_VARIANT_ID 0xF0u
	Register holding the chip variant (see DEV_BME680_VARIANT_GAS_LOW, DEV_BME680_VARIANT_GAS_HIGH).

#define	DEV_BME680_REG_SOFT_RESET 0xE0u
	Register that triggers a soft reset when DEV_BME680_SOFT_RESET_CMD is written to it.

#define	DEV_BME680_REG_FIELD0 0x1Du
	First register of the sensor data field read by dev_bme680_read().

#define	DEV_BME680_REG_RES_HEAT0 0x5Au
	First heater resistance register, for the gas heater profile.

#define	DEV_BME680_REG_GAS_WAIT0 0x64u
	First heater duration register, for the gas heater profile.

#define	DEV_BME680_REG_CTRL_GAS_0 0x70u
	Gas heater control register.

#define	DEV_BME680_REG_CTRL_GAS_1 0x71u
	Gas measurement/heater-profile-selection control register.

#define	DEV_BME680_REG_CTRL_HUM 0x72u
	Humidity oversampling control register.

#define	DEV_BME680_REG_CTRL_MEAS 0x74u
	Temperature/pressure oversampling and power-mode control register.

#define	DEV_BME680_REG_CONFIG 0x75u
	IIR filter control register.

#define	DEV_BME680_REG_COEFF1 0x8Au
	First byte of the first calibration coefficient block.

#define	DEV_BME680_REG_COEFF2 0xE1u
	First byte of the second calibration coefficient block.

#define	DEV_BME680_REG_COEFF3 0x00u
	First byte of the third calibration coefficient block.

#define	DEV_BME680_SOFT_RESET_CMD 0xB6u
	Value that triggers a soft reset when written to DEV_BME680_REG_SOFT_RESET.

#define	DEV_BME680_VARIANT_GAS_LOW 0x00u
	Chip variant value read from DEV_BME680_REG_VARIANT_ID on earlier BME680 units, using the "low" gas resistance compensation formula.

#define	DEV_BME680_VARIANT_GAS_HIGH 0x01u
	Chip variant value read from DEV_BME680_REG_VARIANT_ID on later BME680 units, using the "high" gas resistance compensation formula.

Typedefs
typedef struct dev_bme680_t	dev_bme680_t
	Opaque BME680 handle.

Enumerations
enum	dev_bme680_oversampling_t { dev_bme680_oversampling_skip = 0, dev_bme680_oversampling_1x = 1, dev_bme680_oversampling_2x = 2, dev_bme680_oversampling_4x = 3, dev_bme680_oversampling_8x = 4, dev_bme680_oversampling_16x = 5 }

enum	dev_bme680_iir_filter_t { dev_bme680_iir_filter_off = 0, dev_bme680_iir_filter_1 = 1, dev_bme680_iir_filter_3 = 2, dev_bme680_iir_filter_7 = 3, dev_bme680_iir_filter_15 = 4, dev_bme680_iir_filter_31 = 5, dev_bme680_iir_filter_63 = 6, dev_bme680_iir_filter_127 = 7 }

enum	dev_bme680_heater_temp_t { dev_bme680_heater_temp_200c = 200, dev_bme680_heater_temp_250c = 250, dev_bme680_heater_temp_300c = 300, dev_bme680_heater_temp_320c = 320, dev_bme680_heater_temp_350c = 350, dev_bme680_heater_temp_400c = 400 }

enum	dev_bme680_heater_duration_t { dev_bme680_heater_dur_50ms = 50, dev_bme680_heater_dur_100ms = 100, dev_bme680_heater_dur_120ms = 120, dev_bme680_heater_dur_150ms = 150, dev_bme680_heater_dur_200ms = 200 }

enum	dev_bme680_ambient_temp_t { dev_bme680_ambient_temp_0c = 0, dev_bme680_ambient_temp_10c = 10, dev_bme680_ambient_temp_20c = 20, dev_bme680_ambient_temp_25c = 25, dev_bme680_ambient_temp_30c = 30, dev_bme680_ambient_temp_35c = 35, dev_bme680_ambient_temp_40c = 40 }

enum	dev_bme680_gas_mode_t { dev_bme680_gas_disabled = 0, dev_bme680_gas_enabled = 1 }

Functions
Lifecycle
void	dev_bme680_default_config (dev_bme680_config_t *config)
	Fill a BME680 config struct with safe defaults. More...

dev_bme680_t *	dev_bme680_init (hw_deviceio_t device, const dev_bme680_config_t config)
	Initialize a BME680 sensor. More...

void	dev_bme680_deinit (dev_bme680_t *bme680)
	Deinitialize a BME680 sensor. More...

Properties
uint8_t	dev_bme680_chip_id (const dev_bme680_t *bme680)
	Get the detected chip ID. More...

uint32_t	dev_bme680_measurement_duration_ms (const dev_bme680_config_t *config)
	Calculate how long a measurement takes to complete for a given configuration. More...

Methods
bool	dev_bme680_read (dev_bme680_t bme680, dev_bme680_data_t data)
	Read sensor data from BME680. More...

Detailed Description

Bosch BME680 environmental sensor interface.

Definition in file bme680.h.
