Abstract device I/O interface. More...
#include <stddef.h>#include <stdint.h>
Include dependency graph for deviceio.h:

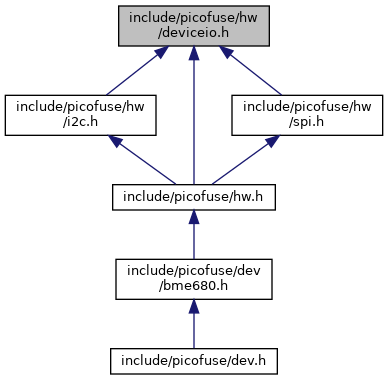

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | HW_DEVICEIO_CAPACITY 8 |
| Maximum number of open device I/O handles, across every backend (SPI, I2C, ...) combined. | |
| #define | HW_DEVICEIO_CONTEXT_SIZE 32 |
| Size in bytes of the per-handle scratch context space embedded in every hw_deviceio_t, for a backend's own private per-device state. | |
Typedefs | |
| typedef struct hw_deviceio_t | hw_deviceio_t |
| Opaque device I/O handle. | |
Enumerations | |
| enum | hw_deviceio_bus_t { hw_deviceio_i2c, hw_deviceio_spi } |
| Which bus backs a device I/O handle. | |
Functions | |
Lifecycle | |
| void | hw_deviceio_deinit (hw_deviceio_t *device) |
| Release a device I/O handle. More... | |
Properties | |
| hw_deviceio_bus_t | hw_deviceio_bus (const hw_deviceio_t *device) |
| Get which bus backs a device I/O handle. More... | |
Methods | |
| size_t | hw_deviceio_xfr (hw_deviceio_t *device, void *data, size_t tx, size_t rx, uint32_t timeout_ms) |
| Perform a raw, bidirectional transfer. More... | |
| size_t | hw_deviceio_read_reg (hw_deviceio_t *device, uint8_t reg, void *data, size_t len, uint32_t timeout_ms) |
| Read bytes from a register on a device. More... | |
| size_t | hw_deviceio_write_reg (hw_deviceio_t *device, uint8_t reg, const void *data, size_t len, uint32_t timeout_ms) |
| Write bytes to a register on a device. More... | |
Detailed Description
Abstract device I/O interface.
Definition in file deviceio.h.
