PWM (Pulse Width Modulation) interface. More...
Include dependency graph for pwm.h:

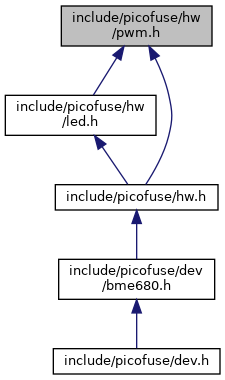

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | hw_pwm_config_t |
| PWM configuration. More... | |
Typedefs | |
| typedef struct hw_pwm_t | hw_pwm_t |
| Opaque PWM handle. | |
| typedef void(* | hw_pwm_callback_t) (hw_pwm_t *pwm, void *userdata) |
| PWM wrap callback function pointer. More... | |
Functions | |
Lifecycle | |
| hw_pwm_t * | hw_pwm_init (hw_gpio_t *gpio, hw_pwm_callback_t callback, void *userdata, const hw_pwm_config_t *config) |
| Initialize a PWM output on a GPIO pin. More... | |
| hw_pwm_t * | hw_pwm_init_device (const char *device, uint8_t channel, const hw_pwm_config_t *config) |
| Initialize a PWM output from a platform-specific device path. More... | |
| void | hw_pwm_deinit (hw_pwm_t *pwm) |
| Deinitialize a PWM handle. More... | |
Configuration | |
| bool | hw_pwm_set_period_ns (hw_pwm_t *pwm, uint64_t period_ns) |
| Set the PWM period. More... | |
| uint64_t | hw_pwm_get_period_ns (const hw_pwm_t *pwm) |
| Get the configured PWM period. More... | |
| bool | hw_pwm_set_duty_percent (hw_pwm_t *pwm, float duty_percent) |
| Set duty cycle percentage. More... | |
| float | hw_pwm_get_duty_percent (const hw_pwm_t *pwm) |
| Get duty cycle percentage. More... | |
| bool | hw_pwm_set_config (hw_pwm_t *pwm, const hw_pwm_config_t *config) |
| Apply a complete PWM configuration. More... | |
| bool | hw_pwm_get_config (const hw_pwm_t *pwm, hw_pwm_config_t *out_config) |
| Read current PWM configuration. More... | |
Control | |
| void | hw_pwm_set_enabled (hw_pwm_t *pwm, bool enabled) |
| Enable or disable PWM output. More... | |
| bool | hw_pwm_get_enabled (const hw_pwm_t *pwm) |
| Query whether PWM output is enabled. More... | |
Interrupts | |
| bool | hw_pwm_irq_supported (void) |
| Check whether PWM wrap interrupt callbacks are supported. More... | |
Detailed Description
PWM (Pulse Width Modulation) interface.
Definition in file pwm.h.
